Features

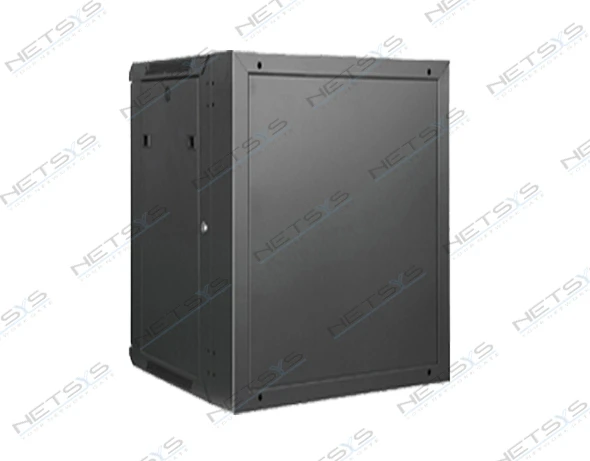

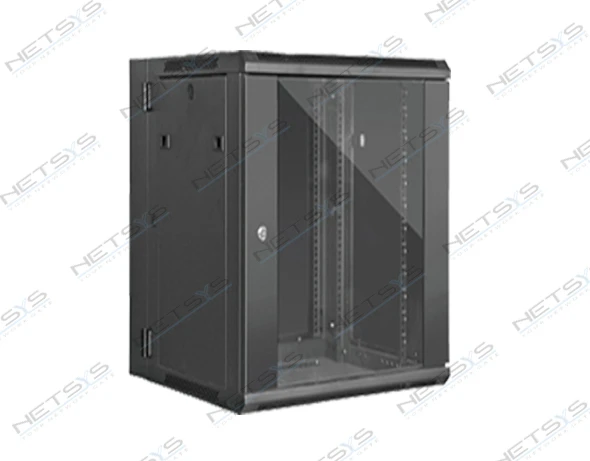

- Double section wall mounted cabinet, the angle between the two doors is 120 degrees and the open angle for the front door is 180 degrees.
- Reliable structure, static loading capacity: 60KG.
- Quick and easy wall mounted, inside 19” standard installation.
- The hinges for the back section are black heavy duty type.
- 120MM size fan could be installed at top of cabinet.
- Cable entry from top and bottom.
- IP Degrees: IP20.
- Flexible packing methods allow for convenient stocking and end user delivery.
- Multiple sizes available.
- Customization requests welcome.
- Allows flat package saving more space and freight.
Standard and Material
- Comply with ANSI/EIA; RS-310-D; IEC297-2; DIN41491: PART1; DIN41494: PART7; GB/T3047.2-92 standard, compatible with 19 international standard, metric system and ETSI standard.
Surface Treatment
- Degreasing, pickling, phosphating, powder coating.
Material
- SPCC cold rolled steel.
Thickness
- Mounting profile 1.5mm; the others: 1.0 to 1.2mm.
Color
- Body color: RAL9004 (black); RAL7035 (grey).
